Level monitoring Prism Components Screw-in Units

FOB Price:

Get Latest Price

Min.Order Quantity:

1 Piece/Pieces

Supply Ability:

10000 Piece/Pieces per Day

Port:

FOB Ningbo

Place of Origin:

China (Mainland)

Payment Terms:

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Brand:

Products Model:

Products Details
Company Profile

Quick Details

Brand Name: --

Model Number: --

Place of Origin: China (Mainland)

Packaging & Delivery

Packaging Details: packing:box,opp bag
Delivery Detail: 30days

Specifications

Level monitoring Prism Components

Screw-in Units

Application

Together with the corresponding GOLDAIR evaluation unit (see separate data sheets), the screw-in unit is used for non-contact detection of fill limits and has been designed for installation at the side of the container or compressor. The screw-in units are suitable for NH3 applications.

Installation instructions

Mounting: The proper sealing at the change-over point depends on the application case and needs to be ensured by the user. The maximum torque of the screw-in unit is about 75Nm and has to be ensured by a ring spanner or a socket key.

The glass cone must not be damaged. The mounting for the electronics (especially the glass) needs to be checked for cleanliness. After refilling the container or compressor, check the seal of the screw-in unit.

Technical specifications

Permitted ambient temperature	-30…+60℃
Max. temperature at the glass cone	+120℃
Housing material	Steel nickel-plated Suitable for NH3

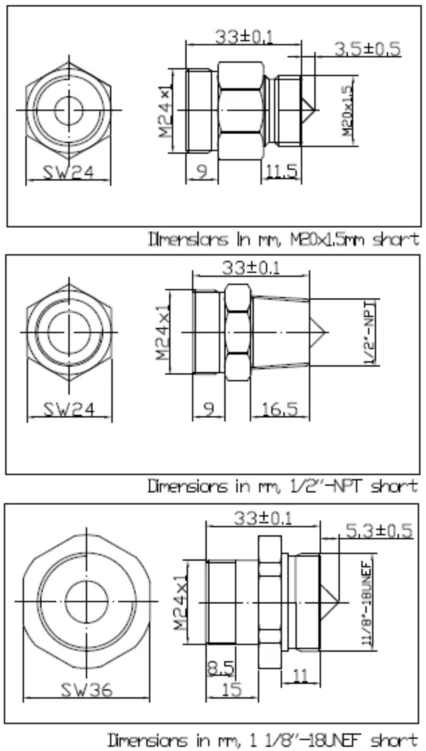

Connection thread	M20x1.5 1/2’’- NPT 11/8”-18UNEF
Width across flat	24
Weight	About 65g
Max. operating pressure PS
-10…+120℃	46bar
-30…+10℃	34.5bar
Min. bursting pressure	230bar

Order data
